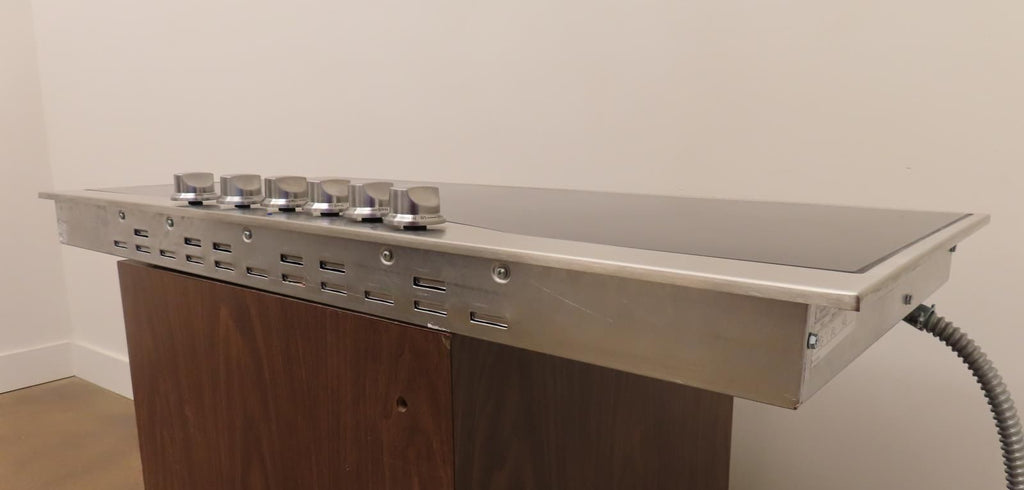

Key Features:

• Glass Ceramic Surface
  Spend more time creating and less time cleaning with our easy-to-clean glass ceramic top and removable knobs. Wear-resistant glass ceramic surface extremely durable for easy cleanup.
• QuickCook™ Surface Elements
  Fast high heat makes cooking a flash in the pan with our QuickCook(TM) surface elements. Surface elements utilize new ribbon technology elements - elements reaching full power in about three seconds.

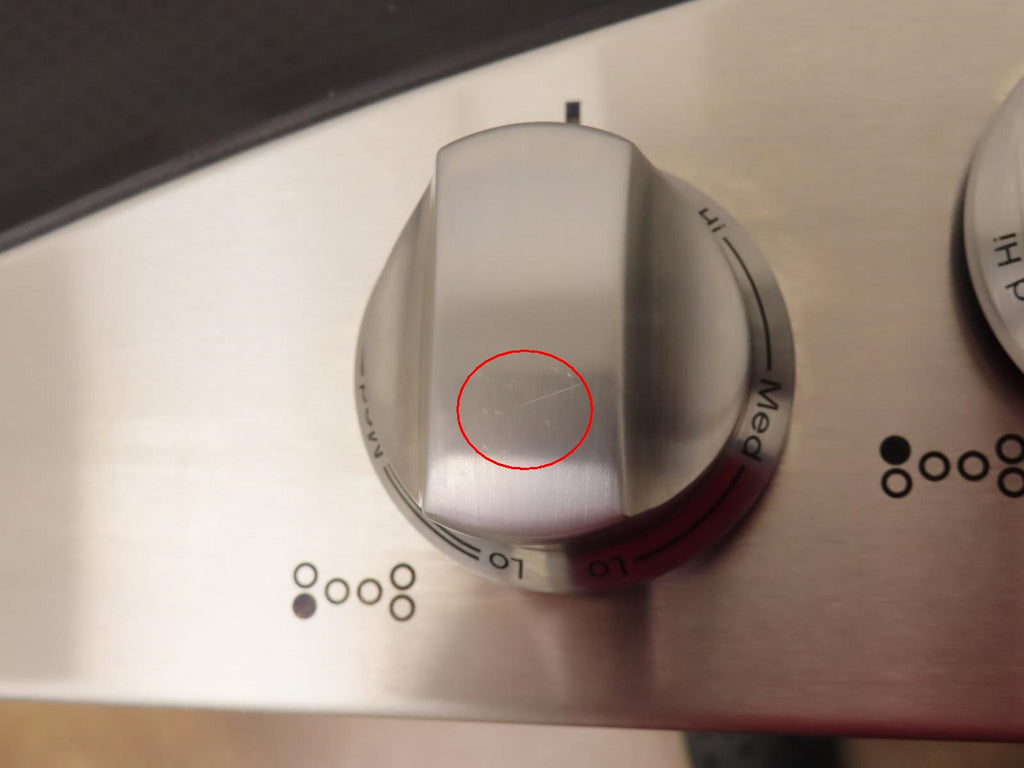

• Metal Die-Cast Knobs
  Keep everything under control with our childproof metal die-cast knobs. These removable, push-to-turn knobs provide safe, easy operation as well as cleanup.

Features:

Features and Functions

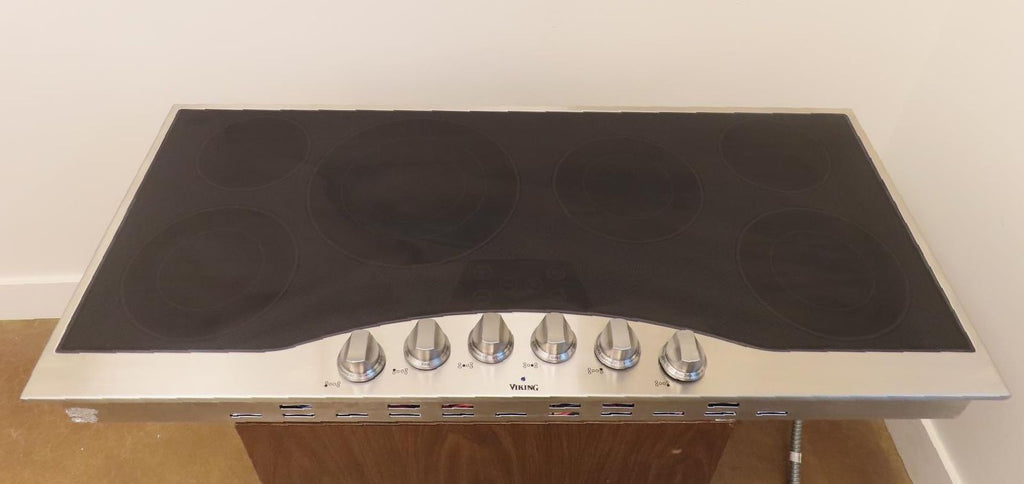

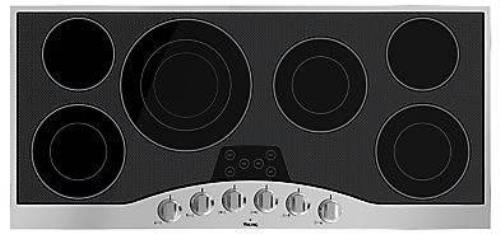

• Wide variety of surface element sizes and wattages
  • Left front – 8 1/2", 2,000-watt dual element
  • Left rear – 6 1/2", 1,200-watt single element
  • Left center – 12, 3,200-watt triple element
  • Right center – 8 1/2", 2,000-watt single element
  • Right front – 8 1/2", 2,000-watt single element
  • Right rear – 6 1/2", 1,200-watt dual element
• QuickCook™ surface elements utilize ribbon technology – elements reach full power in about three seconds
• High infrared transmission for fast cooking, regardless of the type of cookware used


Easy Operation and Cleanup

• Strong, wear-resistant glass ceramic surface with stainless steel frame offers excellent cleanability

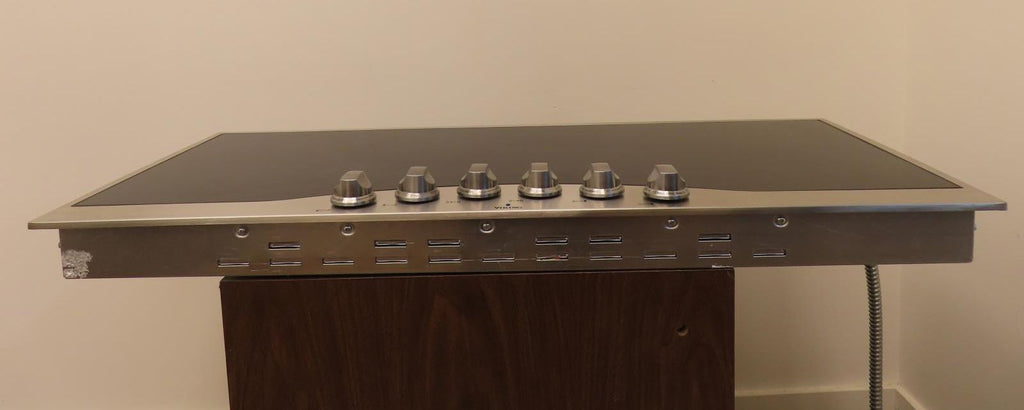

• Durable metal die-cast knobs with child-proof, push-to-turn safety feature
• Customer-removable knobs for easy cleaning
• Overall/burner box dimensions designed to fit majority of similarly sized cooktop cutouts

Finish

• Available in Stainless Steel/Black (SB), featuring black glass

Specifications:

• Element Rating:
  • Left Front – 2,000 watts
  • Left Rear – 1,200 watts
  • Left Center – 3,200 watts
  • Right Center – 2,000 watts
  • Right Front – 2,000 watts
  • Right Rear – 1,200 watts
• Maximum Amp Usage:
  • 240V – 48.3 amps
  • 208V – 41.9 amps
• Electrical Requirements
  • 240-208/120VAC/60Hz; factory-installed, agency-approved 4 ft. (121.9 cm) flexible steel conduit
  • 3-wire with ground included; rated 60-amp 125-250VAC minimum

Approximate Dimensions:

Overall

• Width: 45"
• Height: 4.5"
• Depth: 21"

Cutout

• Width: 43.13" - 44.13"
• Height: 3.13"
• Height With Conduit: 4.13"
• Depth: 20" - 20.25"

Approximate Weight:

• Shipping: 71 lbs.
