Thermador UCVM30FS 30" 3 Speed Button Control Inline Stainless Downdraft hood

Regular price $1,149.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Category:

Alabama Appliance

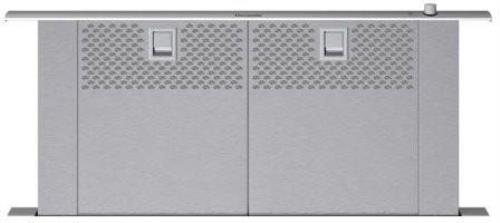

Thermador Masterpiece Series UCVM30FS
30" Downdraft Ventilation with Optional Internal/In-Line/Remote Blowers, Dishwasher-safe Filters, 3-Speed Button Control and Screw Drive System.

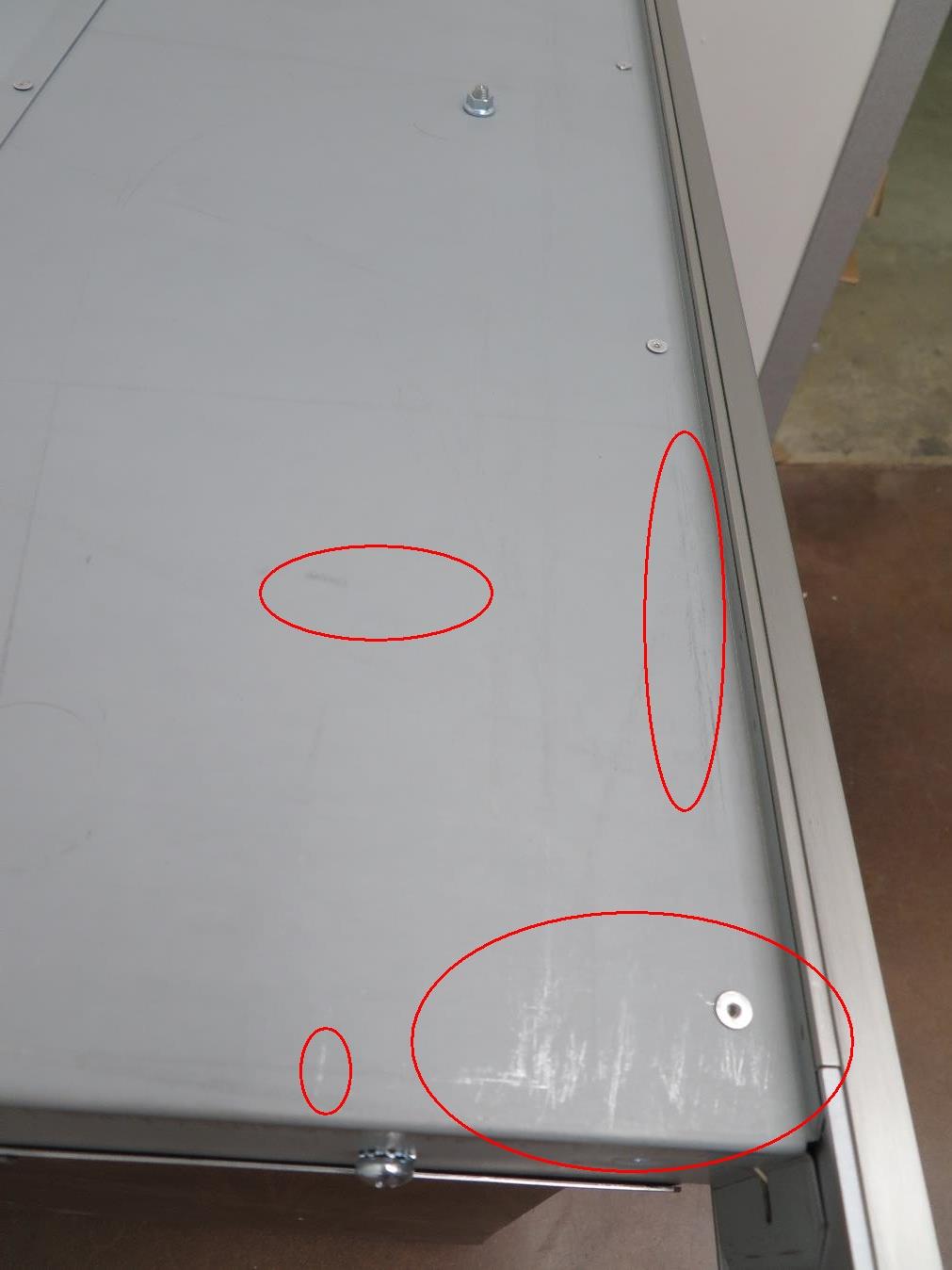

This unit is new out of box in good cosmetic condition. Some flaws as shown in the pictures:
1-SCUFFS/SCRATCHES ON THE TOP OF THE UNIT.


This unit comes with full manufacturer's warranty.

This warranty does not cover cosmetic imperfections, functionality only.
Pictures are for the actual units.



This item will require lift gate for delivery which is $89.00
Please contact us at 205 407 6621 for more info.




THIS ITEM MUST BE SHIPPED FREIGHT.

SPECIFICATIONS:

Dimensions
Overall Width: 30 1/2"
Overall Height: 34 1/2"
Overall Depth: 3 3/4"
Available Sizes (Width): 30", 36"
Appearance
Color/Finish: Brushed Stainless Steel
Installation Type: Wall or Island behind Cooktop
Blower Type: Purchased Separately
Hood Information
Duct Size At Discharge: 6" Round
Ducting Direction: Down, Left or Right
Filter Type: Full-face Mesh
Number of Dishwasher Safe Filters: 2
Recirculation Kit: Kit Sold Separately (RECIRC36DF)
Control Type: Mechanical Button Control
Fan Speeds: 3
Recommended for these Thermador Cooktops and Ranges: Nonprofessional gas, electri or induction cooktops
Motor Information
Required Power Supply: 15 Amps (min) 120 VAC, 60 Hz
Remote Blower Options (Purchased Separately) (Wall or Roof mounting) (Transition CV2T6 required)
VTR630D - 600 CFM, 6" Duct Inlet: 14 3/8"W x 19"H x 10 3/4"D
VTR1030D - 1000 CFM, 10" Duct Inlet: 19 7/8" W x 20 3/4"H x 12 1/8"D
Inline Blower Options (Purchased Separately) (Transition CV2T6 required)
VTI610D - 600 CFM, 6" Duct Inlet: 14 1/2"W x 12 3/4"H x 9 7/8"D
VTI1010D - 1,000 CFM, 10" Duct Inlet: 19 1/8"W x 14 3/8"H x 12"D
Integrated Blower Options (Purchased Separately)
VTN600CV2C: 15 1/8"W x 14 3/8"H x 6 3/4"D
Blower Installation ACcessories
Roof Plate - Required for roof mount of remote blowers: RFPLT600 - 600 CFM; Blowers, RFPTL1000 - 1000CFM and 1300CFM Blowers
Transition for Remote or Inline blowers: CV2T6: 15 1/8"W x 14 3/8"H x 6 3/4" D
