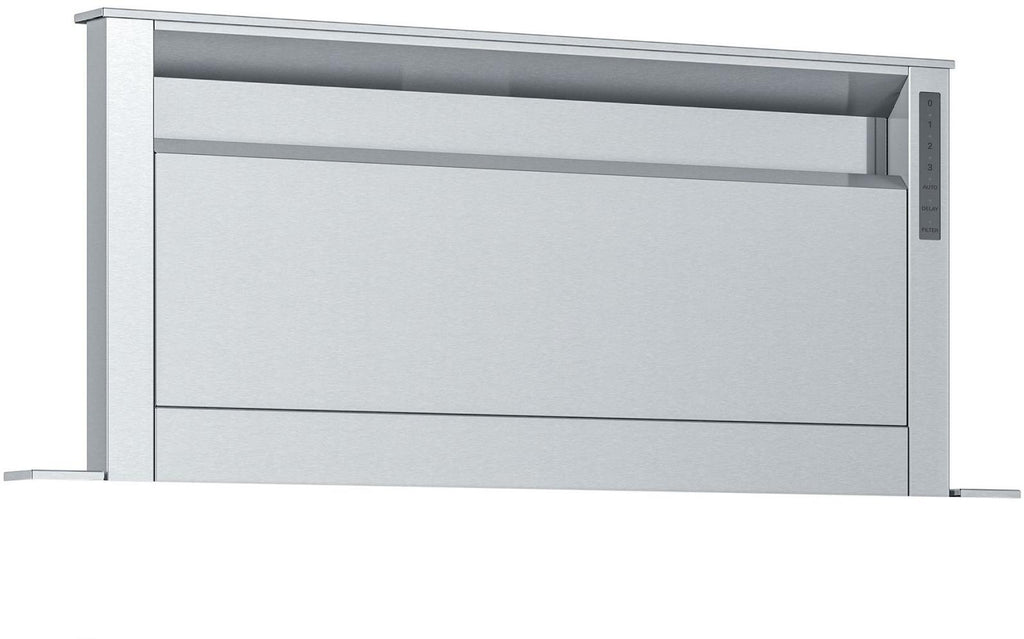

Thermador Masterpiece Series UCVM36XS
36 Inch Convertible Downdraft Ventilation

Speed Settings, Automatic Mode, Dishwasher Safe Filter, Delay Shut-Off, Powerfully Quiet®,
15-inch Telescopic Design, Flexible Discharge Design, Remote/Inline Blower, and Check Filter Light.

Quick Specs:
Venting Type: Convertible
Blower Included: No
Blower Type: Sold Separately
Width: 37 Inch
Depth: 2 3/4 Inch
Height: 44 3/8 Inch
WiFi: No
Sones: 1.2
Number of Fan Speeds: 3
Dishwasher Safe Filters: Yes
Delay Shut-Off: Yes

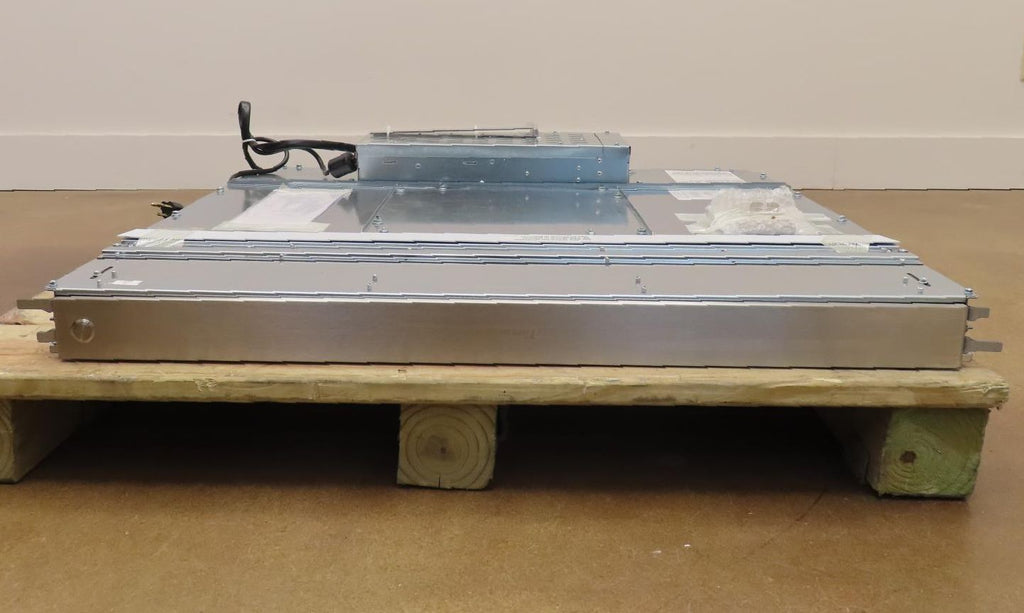

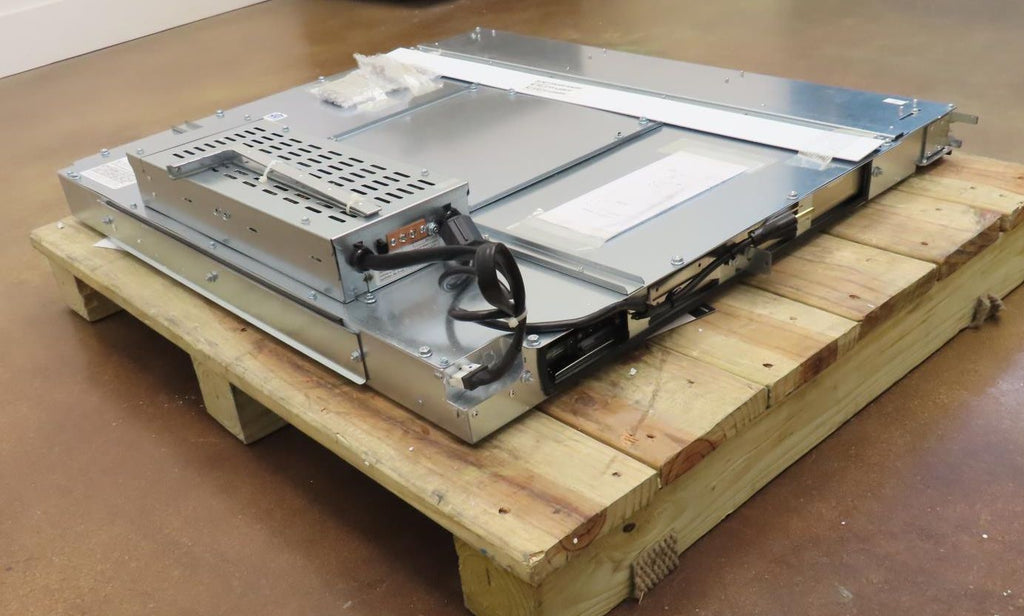

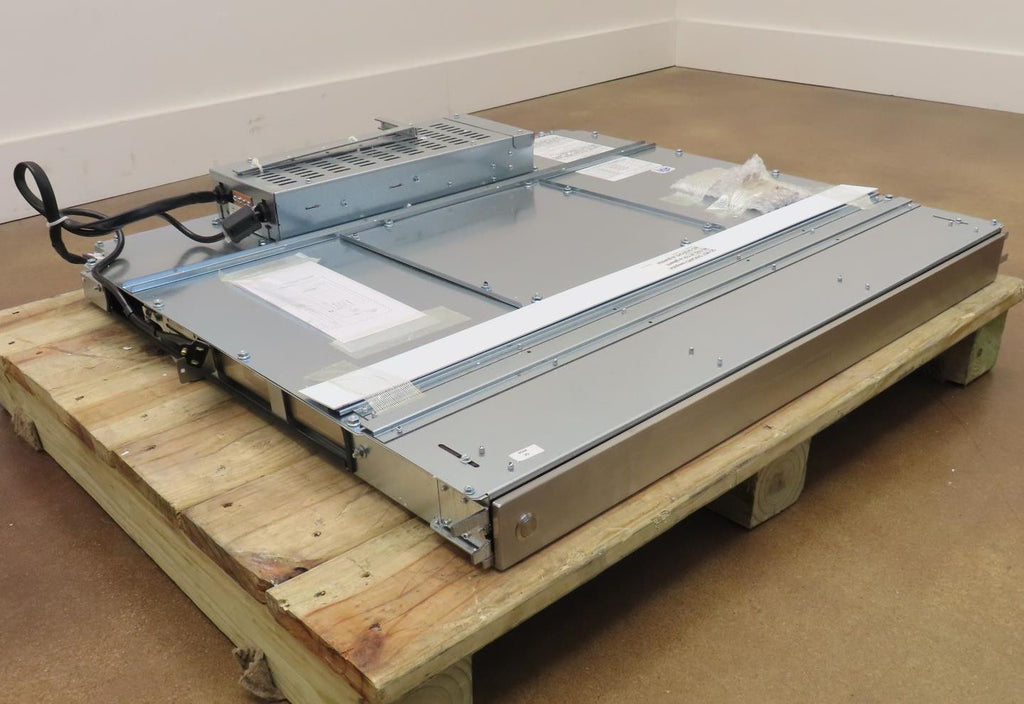

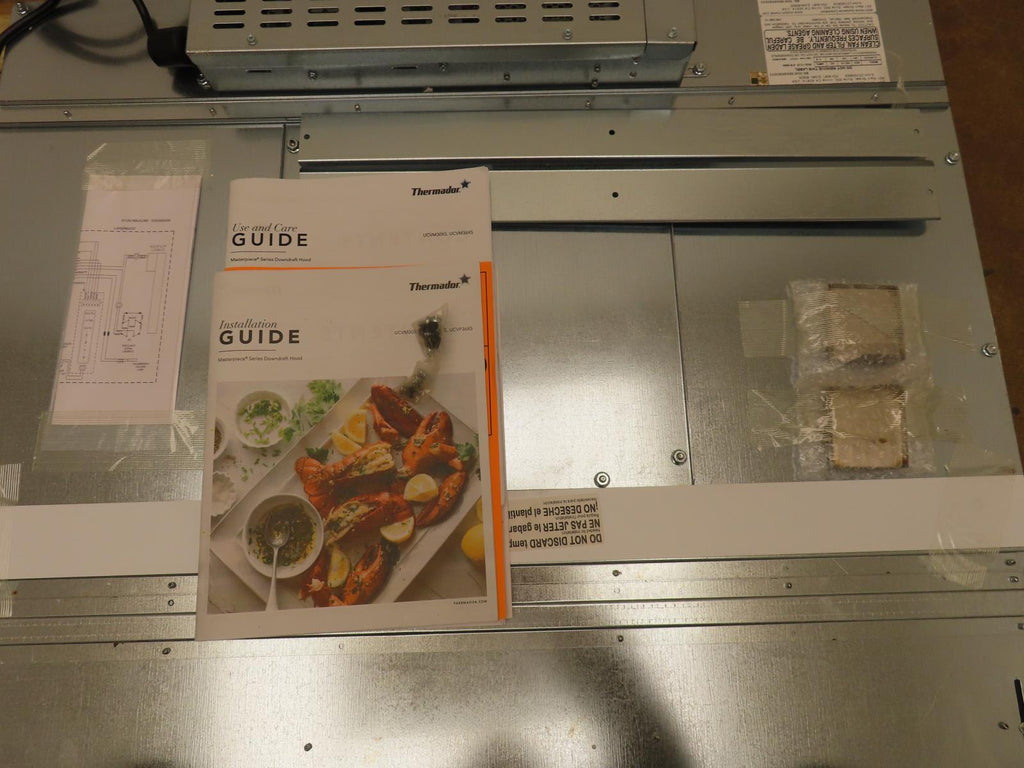

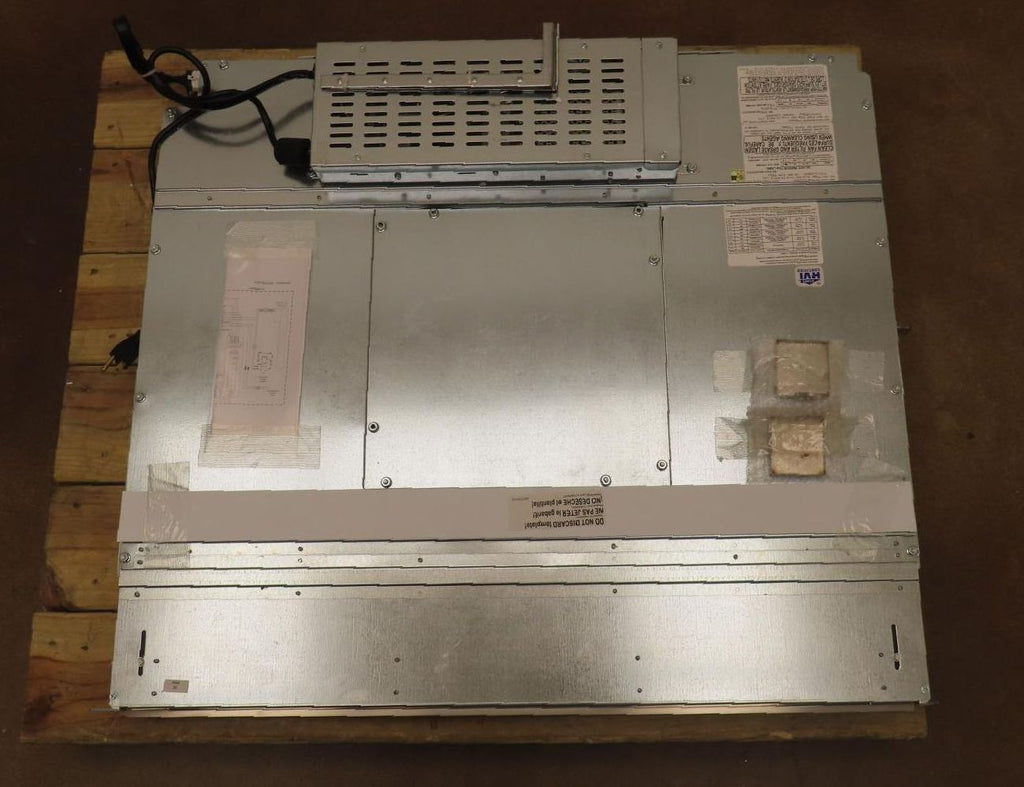

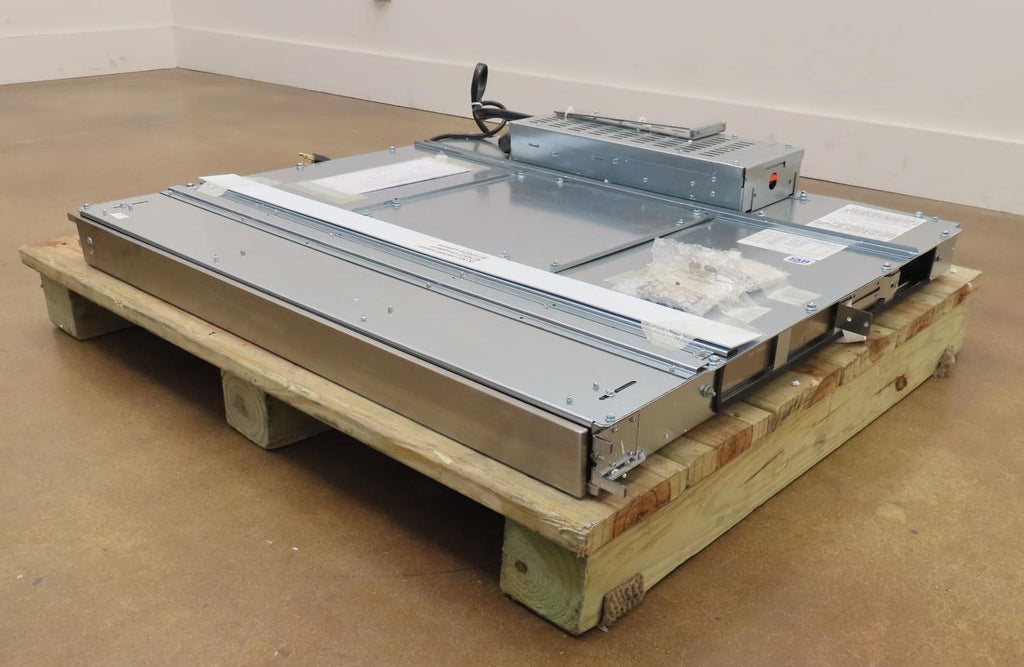

This unit is new out of box in perfect cosmetic condition.

This unit comes with full manufacturer's warranty.


**THIS UNIT DOES NOT COME WITH A BLOWER**
**THE BLOWER HAS TO BE PURCHASED SEPARATELY**

Free shipping is excluded for these states: NJ, NY, WA, ID, CO, UT, DC, OR, MT, NV, AZ, WY AND CA.

If you reside in one of these states, please call us at 205 407 6621 for shipping quotes.
This item will require lift gate for delivery which is $89.00

Please call us at 205 407 6621 for more info.

THIS ITEM MUST BE SHIPPED FREIGHT.

Features:

3-Stage Speed Settings
  • Select the precise fan speed needed with four different settings.
Automatic Mode
  • Detects temperatures to adjust fan speed automatically.
Dishwasher Safe Filter
  • Grease mesh filters are dishwasher safe and easy to clean.
Delay Shut-Off
  • 10-min delay shut-off ensures lingering odors are whisked away.
Powerfully Quiet®
  • Efficient in operation at 1.2 sones at low speed.
15-inch Telescopic Design
  • Rises to capture heat, smoke, grease, and steam.
Flexible Discharge Design
  • Gives 6 configurations to maximize space.
Remote/Inline Blower
  • To reduce noise, integral for top performance.
Check Filter Light
  • Check filter reminder light illuminates after 40 hours of operation.
Engineered
  • Allow for flexibility to exhaust at sides, front or rear
Additional Features:
  • Sleek, removable front filter panel that acts as a splatter shield.
  • Blowers sold separately and required to complete the installation.
  • Recirculation kit available, use with induction/electric cooktops only.
  • Replacement charcoal filters for recirculation kit sold separately.
  • Gas cooktop seal kit required to use with gas cooktops sold separately.
  • Design match to Thermador Masterpiece Series cooktops.
  • Suitable for wall or island applications.
  • An authentic brushed stainless steel finish.
  • Sleek, smooth touch control makes cleaning easy with a damp cloth.
  • Designed to allow for flexibility to exhaust at sides, front or rear.
  • Some blower positions may need deeper cabinets. See the installation guide.
  • Additional accessories may be required for installation, see the manual.

Specifications:

BLOWERS AND TRANSITIONS
Remote Blowers:
VTR630W - 600 CFM, VTR1030W - 1000 CFM, VTR1330W - 1300 CFM
Inline Blowers:
VTI610W - 600 CFM, VTI1010W - 1000 CFM
Flexible Blower:
VTD600P - 600 CFM
Remote and Inline Blower Downdraft Transitions:
CVTSIDE6 - 6" Side / Rear Transition, CVTSIDE8 - 8" Side / Rear Transition, CVTSIDE10 - 10" Side / Rear Transition, CVTFRONT6 - 6" Round Front Plate, CVTFRONT8 - 8" Round Front Plate, CVTFRONT10 - 10" Round Front Plate, CVDUCT2 - 2' Rectangular Duct, CVTRECT2 - Transition for Rectangular Duct
GENERAL PROPERTIES
Operating Mode Convertible:
Ducted / Recirculating
Maximum CFM:
Blower Sold Separately
Number of Speed Settings:
3-Stage
Sones:
1.2 LS / 10.5 HS
Motor Location:
External
Number of Lights:
N/A
Damper Included:
No
Grease Filter Material:
Washable Synthetic
Grease Filter Type:
Multilayer Cassette
ACCESSORIES (REQUIRED)
Blower (Sold Separately):
Yes
ACCESSORIES (OPTIONAL)
UCVRECIRC:
Recirculation Kit - Use with induction/electric cooktops only
UCVFILTER:
Replacement Charcoal Filters
UCV36ST:
Downdraft Gas Cooktop Seal Trim Kit (Required for Installation with Gas Cooktops)
EXTNCE5:
5 ft. Electrical Panel Extension Cable
Roofplates RFPLT600P:
For Use with Remote Blower VTR630W
Roofplates RFPLT1000P:
For Use with 1000 CFM Remote Blower VTR1030W and 1300 CFM Blower VTR1330W
25 ft. Blower Connector Cable:
For use with the following inline, remote and flexible blowers: VTR630W, VTR1030W, VTR1330W, VTI610W, VTI1010W, VTD600P
TECHNICAL DETAILS
Current (A):
10 A
Volts (V):
120 V
Frequency (Hz):
60 Hz
Plug Type:
120V-3 prong
Power Cord Length (in):
30"
DIMENSIONS & WEIGHT
Overall Width of Canopy Included (HxWxD):
44 3/8" x 37" x 2 3/4"
Height of the Rise (in.):
15"
Diameter of Air Duct (in.) Internal:
8"
Diameter of Air Duct (in.) External:
6", 8" or 10"
Net Weight (lbs):
47 lbs
WARRANTY
Limited Warranty Parts and Labor:
2 Year
